Intelligent Balancer device is currently the smallest,
Intelligent lifting equipment with the strongest lifting capacity, not only applicable
In all rail systems, it can also be easily installed in
The column, while ensuring the convenience of use, can also be guaranteed
It is beautiful and light. At the same time, the system has built-in tilt protection,
Ensures that the operator can easily carry out lateral pulling.
Product Characteristics
- Intelligent Balancer can provide an external extension handle that can integrate f with the fixture, which can ensure that the operator does not need to be tiptoe in the highest operating position when working; No need to bend in the lowest operating position. So as to ensure the operation comfort.
- Intelligent Balancer can effectively reduce the self-weight of the booster device, so that the operator can easily shift the load. Unique handle design, only very light force, can operate the equipment to rise Down, to ensure that the operator’s work is light, to meet the high tempo production.
- Intelligent Balancer offers 5 specifications (75kg-600kg), up and down stroke up to 3.5m speed up to 39m/min lifting equipment, enabling you to more efficient production operations.
- Intelligent Balancer provides more accurate speed control (up to 200mm/s) and millimeter-level position control, with multiple safety protection (power failure protection, overload protection, load protection Mutation protection, etc.) so that you can be more assured The production operation.
- When moving the load assembly positioning, the convenience of two-handed operation is much greater than that of one-handed operation, so that your assembly job alignment is accurate. And equipped with power fixture associated protection to avoid load drop during misoperation.

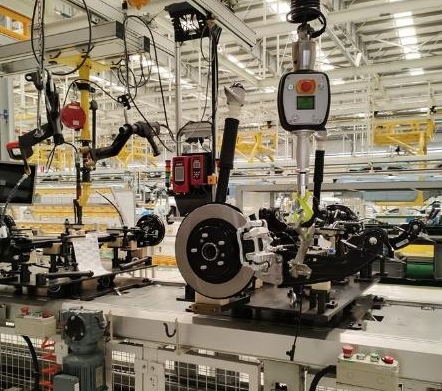

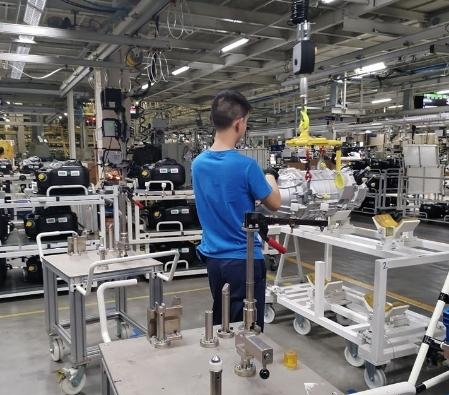

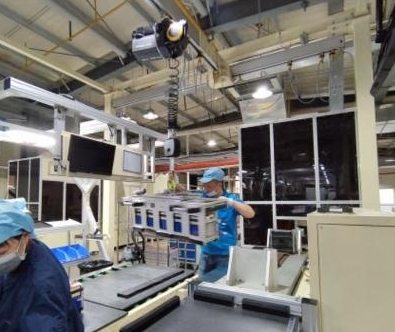

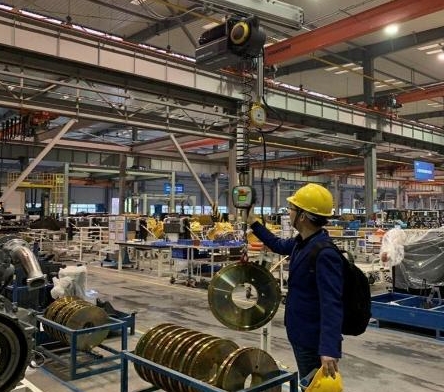

Case Presentation
Intelligent Balancer offers a variety of handle types to choose from, in addition to the regular handle configuration, also offers an external extension handle,
Wired control handle, wireless control handle, we can choose the right configuration for you according to your needs.
Coaxial control handle
Intelligent Balancer’s regular handle,Can cooperate with you for convenience Operation, suitable for small sizes Assembly of loads.

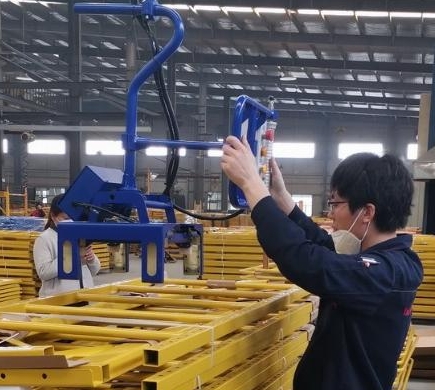

External extended control handle
Intelligent Balancer is equipped with 200mm,300mm , 500mm ,800mm handles of four lengths,Perfect for man-machine operation, applicable Assembly for large loads.
Product Specification
| Model Number | W75 | W150 | W225 | W300 | W600 |
|---|---|---|---|---|---|
| Maximum lifting weight (kg) | 75 | 150 | 225 | 300 | 600 |
| Maximum lifting speed Full load (m/min) | 39 | 23.5 | 23.5 | 19.6 | 9.8 |
| Maximum lifting range (m) | 3.5 | 3.5 | 3.5 | 3.5 | 1.7 |
| Main Power Supply (vac) | 220 | ||||
| Control mode | Servo control | ||||
| noise | 475dB | ||||
| Operating humidity range (non-condensing) | 0-90% | ||||
| Load cycle level | H5 | ||||
| Install | Applicable to all orbital systems | ||||
Note: The data could be adjusted according to the actual situation
