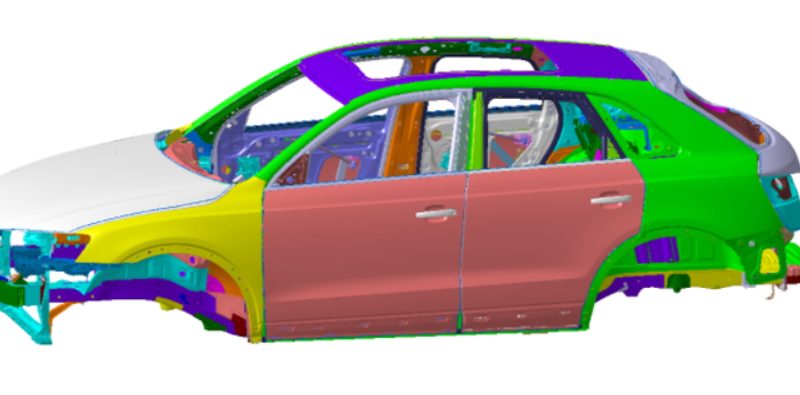

The main welding line PICKUP system for automotive OEMs�automatic side panel assembly system for commercial vehicles�is an innovative solution developed by Liftoal company. This fully automated system has revolutionized the traditional production line by significantly boosting production efficiency and quality. The detailed step-by-step process is illustrated below.

Operation Process

1. Start Operation
The operator uses a manual industrial manipulator to pick up the left and right side panel assemblies from the side panel rack, rotate them by 90 degrees, and place them flat on the two designated side panel platforms.

2. Activate Equipment

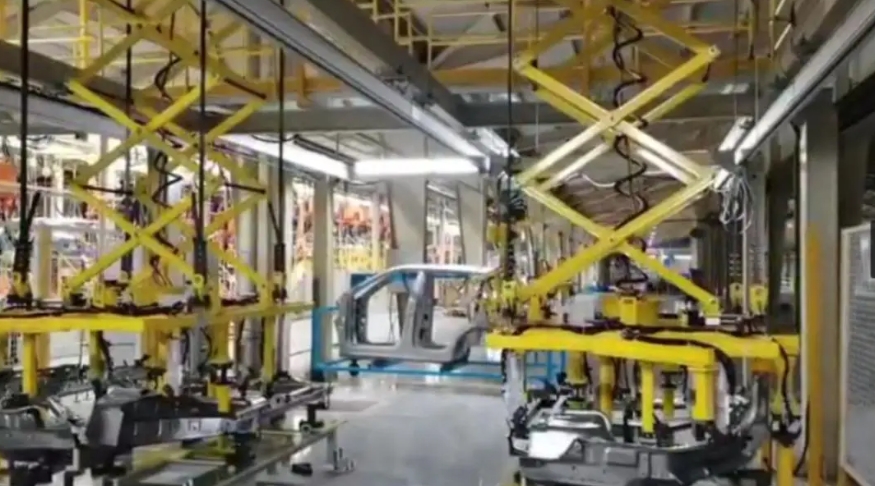

Once the operator exits the loading area, they signal the PICKUP system (the automatic side panel assembly manipulator system) to start. The two PICKUP carts automatically move to the designated positions, release the side panel grippers, and descend to the material pickup point. The two grippers then pick up the left and right side panel assemblies from the side panel platforms.

3. Lift the Side Panel Assemblies
Both grippers pick up the left and right side panel assemblies and, after verifying successful pickup through sensors and calibration checks, lift the side panel assemblies upwards.

4. Move to the Robot Work Station
The side panel grippers lift the components further to the maximum height, then engage the clamping device to secure the parts. The PICKUP carts move along the track towards the robot work station.

5. Lower the Side Panel Assemblies
Upon reaching the unloading position above the robot work station, the positioning lock device activates, and the PICKUP system slowly lowers the side panel assemblies into place.

6. Release the Side Panel Assemblies
The PICKUP system continues to lower the side panel assemblies until they are securely placed on the unloading table. After sensor detection and logic verification, the system releases the side panel assemblies.

7. Activate the Grippers
Once the side panel assemblies are released, the system initiates the gripper lift sequence. The grippers move upwards, preparing for the next cycle.

8. Complete the Operation
The grippers continue to lift to the maximum height and lock into position. The PICKUP system moves from the unloading position to the waiting area, ready to retrieve new materials as soon as a signal is given. Meanwhile, after leaving the unloading position, the system signals the robot work station to proceed with the next step in the process (e.g., continuing body-in-white assembly and welding).

Value of PICKUP and Industrial Manipulators in Industrial Production

When it comes to automation and mechanization in production lines, the PICKUP system and industrial manipulators are highly valuable assets. Here are some of their key benefits:

• Increased Production Efficiency: PICKUP and industrial manipulators can handle materials quickly and precisely, significantly increasing the production line’s speed and output.
• Reduced Labor Costs: By utilizing PICKUP and industrial manipulators, companies can reduce labor costs while enhancing efficiency. These manipulators can take over repetitive and hazardous tasks, minimizing human exposure to dangerous environments.
• Enhanced Quality and Accuracy: The high precision of the PICKUP system and manipulators ensures greater accuracy during production, resulting in consistent and reliable product quality.
• Adaptability to Diverse Production Needs: These systems can be programmed to handle various production requirements, including different product sizes and complex operations, making them versatile solutions for diverse industrial demands.
• Improved Safety: The ability of PICKUP and industrial manipulators to automate high-risk tasks increases production line safety and reduces the risk of workplace accidents.

Overall, PICKUP and industrial manipulators provide highly valuable solutions for automating and mechanizing production lines. They increase efficiency, reduce labor costs, improve product quality and accuracy, and enhance workplace safety. Moreover, their adaptability makes companies more flexible and efficient in meeting production demands.
