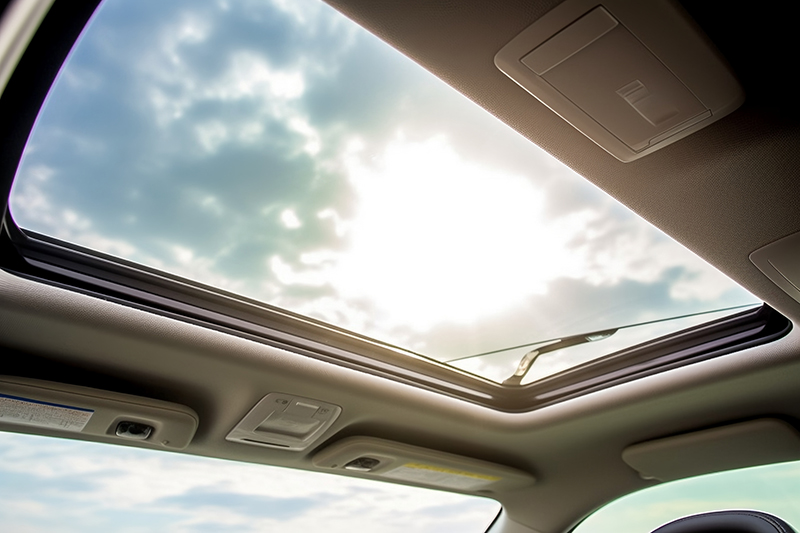

As cars become more popular in China, the percentage of vehicles equipped with sunroofs has surpassed 50%, with some premium models featuring sunroofs in 100% of units. Sunroof styles vary widely, including inbuilt, external sliding, pop-up, fixed panoramic glass, and folding types.

CAR SUNROOF INSTALLATION

Today’s car buyers are increasingly young and prioritize customization. Panoramic sunroofs are becoming more popular with consumers, and as sunroofs get larger, the challenges in manufacturing also increase. Larger glass panes are heavy, making manual installation difficult. This is where industrial manipulators play a critical role.

PART 1: Challenges of Traditional Sunroof Installation

1. Manual Handling: The glass is heavy and requires multiple workers to lift and position, increasing the risk of workplace injuries during transportation and installation.
2. Electric Hoist Limitations: Using a cantilever electric hoist is still cumbersome, lacking the precision needed for sunroof installation and safety features to protect workers.

PART 2: Highlights of the Industrial Manipulator

1. Reduced Labor Requirements: The number of operators required has decreased from three to just one, resulting in a 62% increase in efficiency, a 78% reduction in costs, and a significant improvement in product quality while eliminating workplace injuries.
2. System Components: The manipulator system is comprised of three main elements: a rail system, a pneumatic balancer unit, and standardized vacuum glass handling grippers.
3. Safety Features: The manipulator is equipped with a load indicator that displays a red alert when carrying a load, and a safety lock to prevent accidental unloading when the glass is not properly supported, significantly reducing injury risk.
4. Ergonomic Controls: The integrated ergonomic control handle allows both left-handed and right-handed operation, making the sunroof installation process much easier and more convenient.

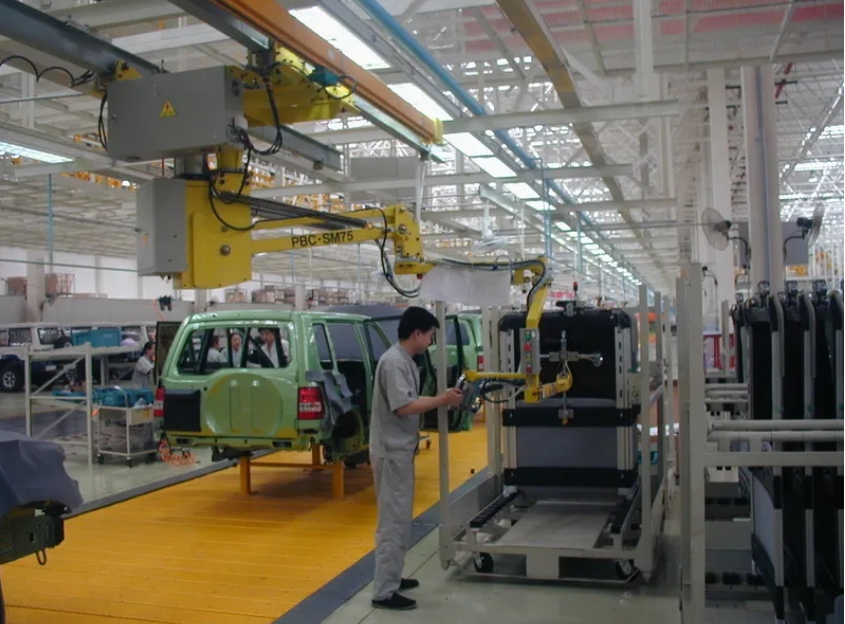

PART 3: Installation Process

• A forklift delivers the sunroof assembly to the designated workstation.
• The operator activates the industrial manipulator system from the parked position.
• The vacuum suction gripper of the manipulator is positioned in the center of the sunroof assembly’s outer surface for automatic attachment.
• Slowly lift the assembly until the load indicator shows red, then continue to lift.
• Move the manipulator to transfer the sunroof assembly to the vehicle’s assembly position.
• Align the sunroof assembly with precise vertical and horizontal adjustments and move it to the installation position.
• Fine-tune the angle of the sunroof to ensure the outer surface is flush with the surrounding area.
• Gradually lower the assembly until the load indicator turns white, then press the release button to unload the assembly.
• Raise the manipulator gripper and return it to the parked position, ready for the next cycle.

Using an industrial manipulator for sunroof installation significantly improves production efficiency and product quality while reducing labor intensity and risk of injuries. As sunroof sizes continue to grow to meet consumer demands for larger panoramic views, the role of industrial manipulators in automotive production becomes even more vital, offering manufacturers a solution that is both efficient and ergonomic.
